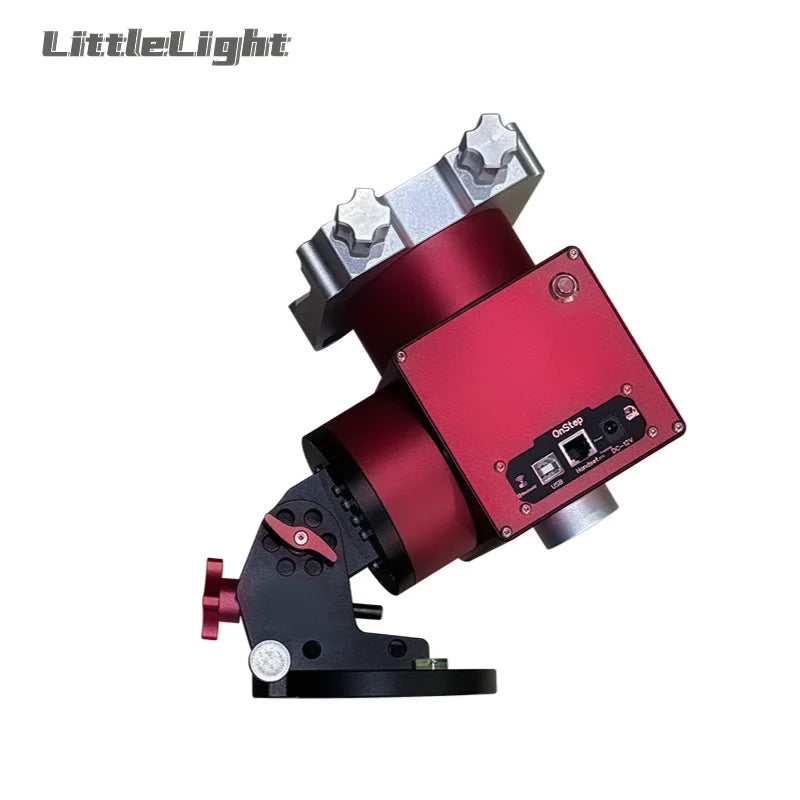

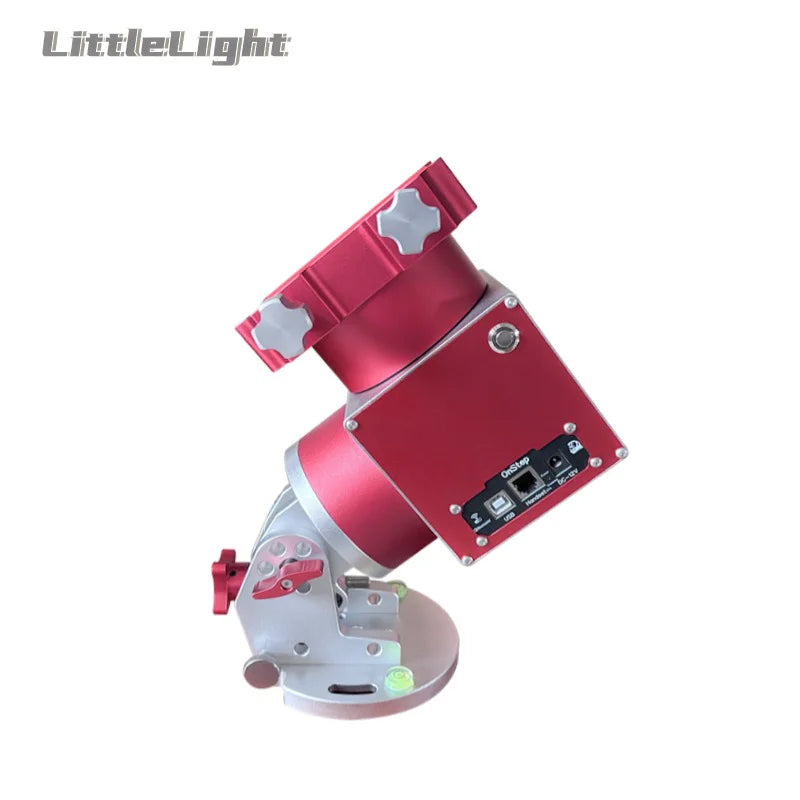

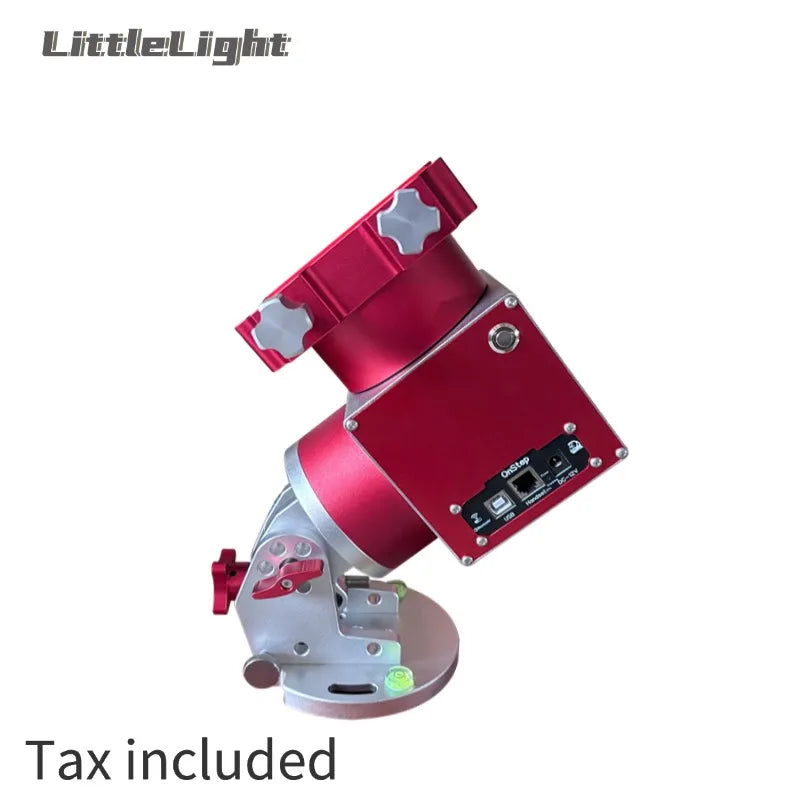

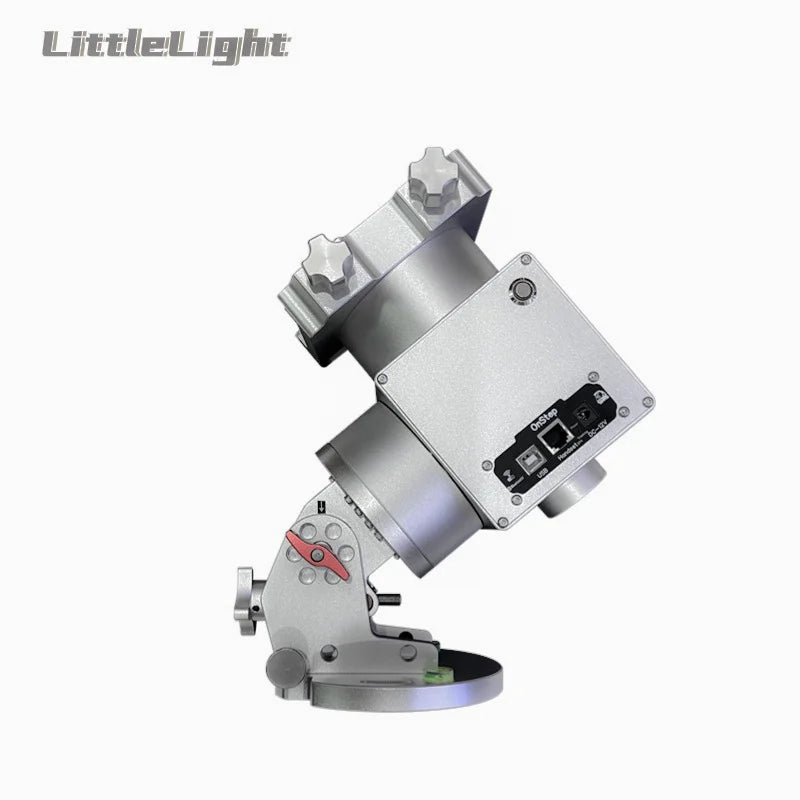

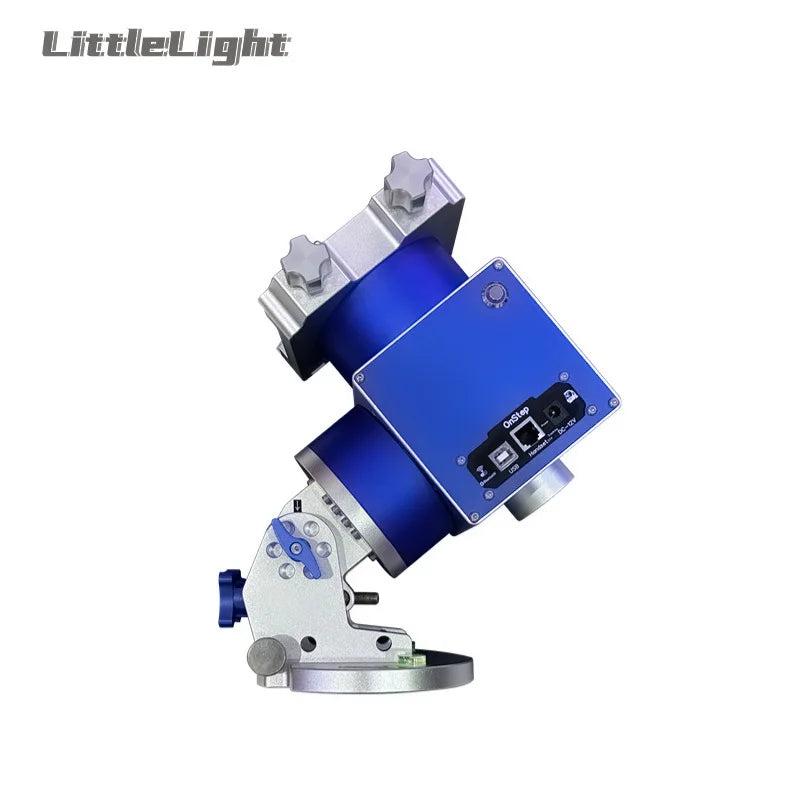

The JUWEI17-100 is an ultra-portable, precision harmonic equatorial mount designed for backyard astronomers and travel astrophotographers. With its dual-stage 17‑100 harmonic drive system, this mount offers smooth, backlash-free tracking in a compact form factor.

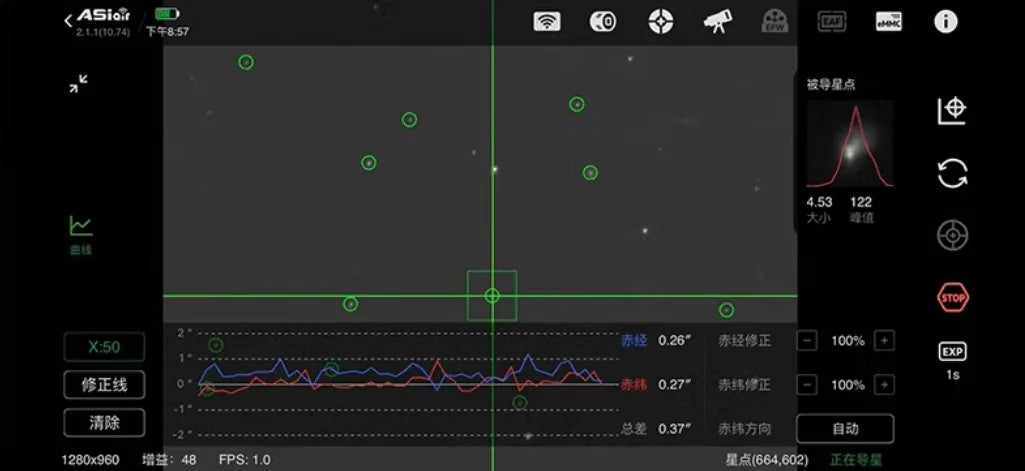

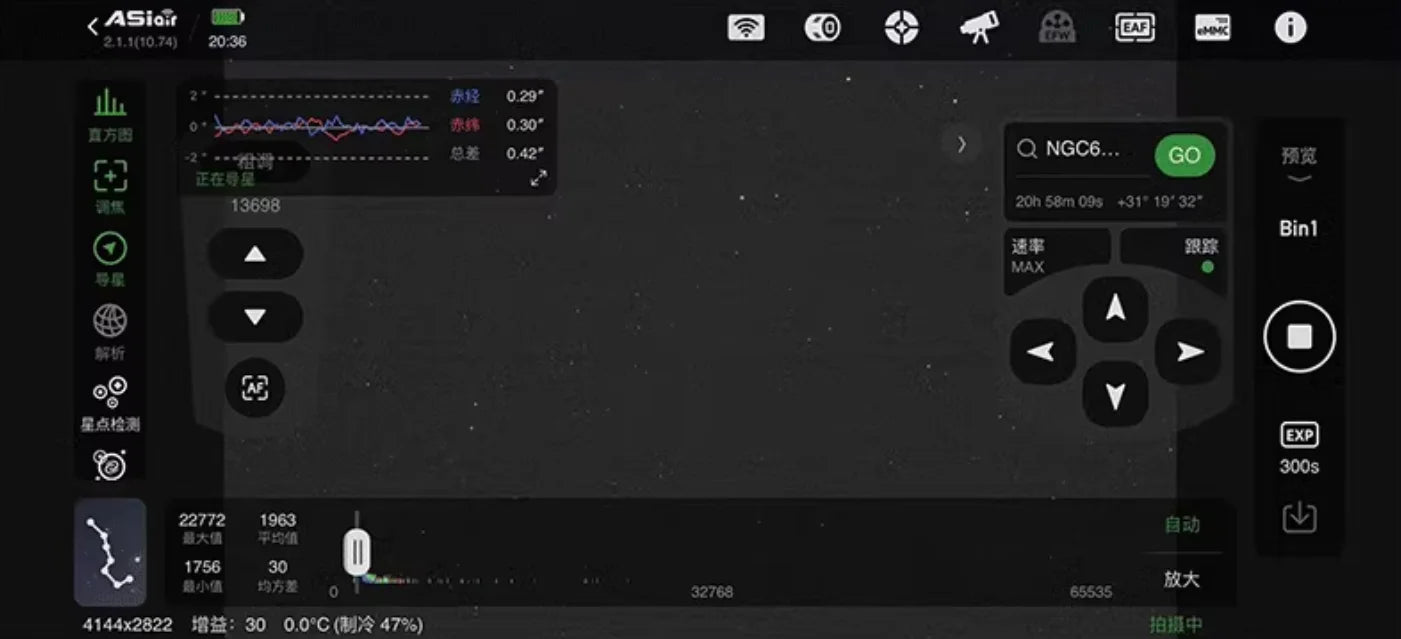

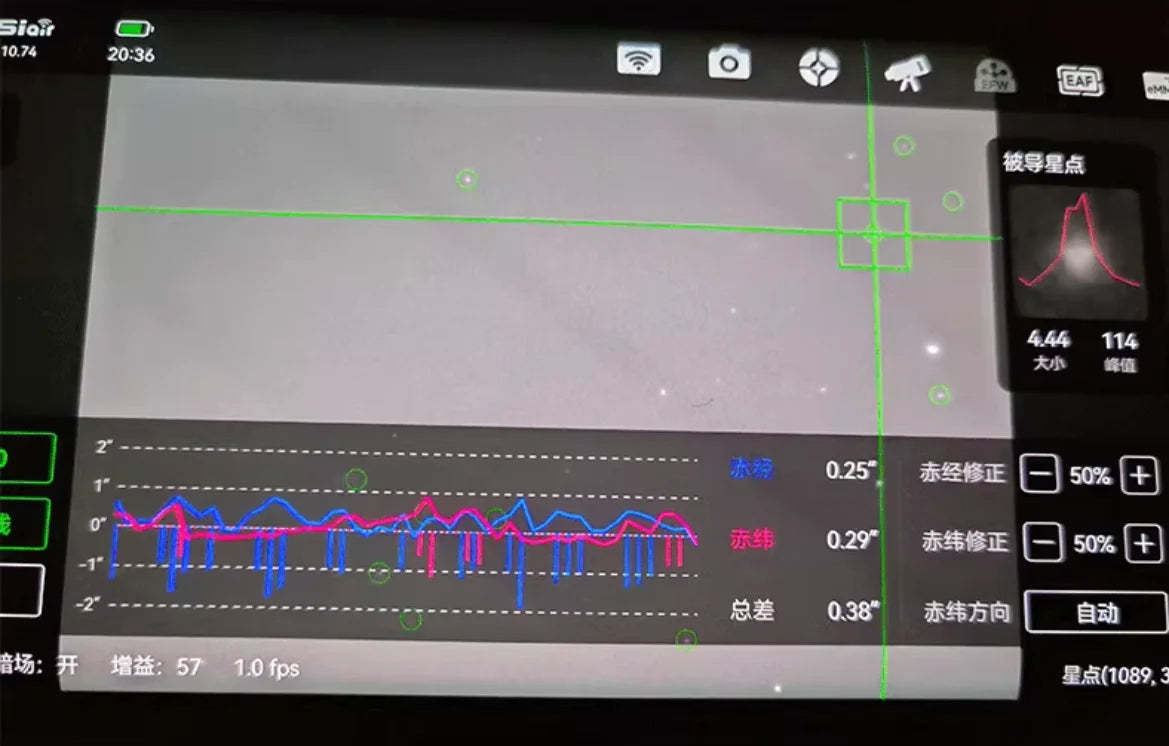

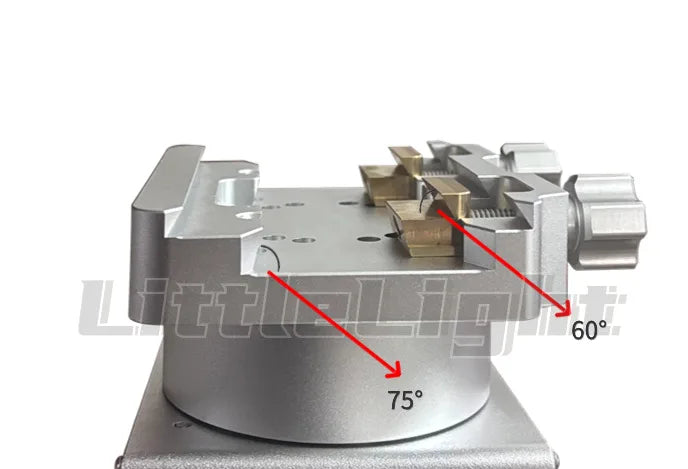

It supports up to 13kg of gear without a counterweight and features a wide dovetail groove for compatibility with most telescope tubes and mounting plates. Its open-source OnStep control system gives you total flexibility—connect via Wi-Fi, ASIAir, NINA, or your favorite guiding software.
Key Specs:
Load Capacity: 13kg (no counterweight), 18kg (with 5kg counterweight)
Drive System: Double 17‑100 harmonic reducer
Reduction Ratio: 400:1

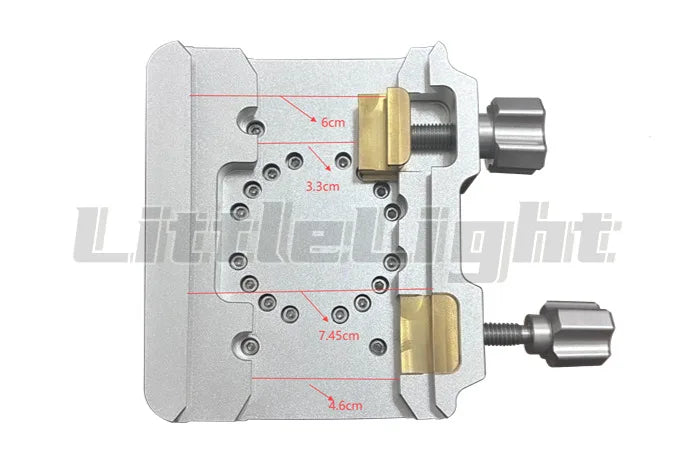

Mount Standard: GEM 5 chassis, wide dovetail groove

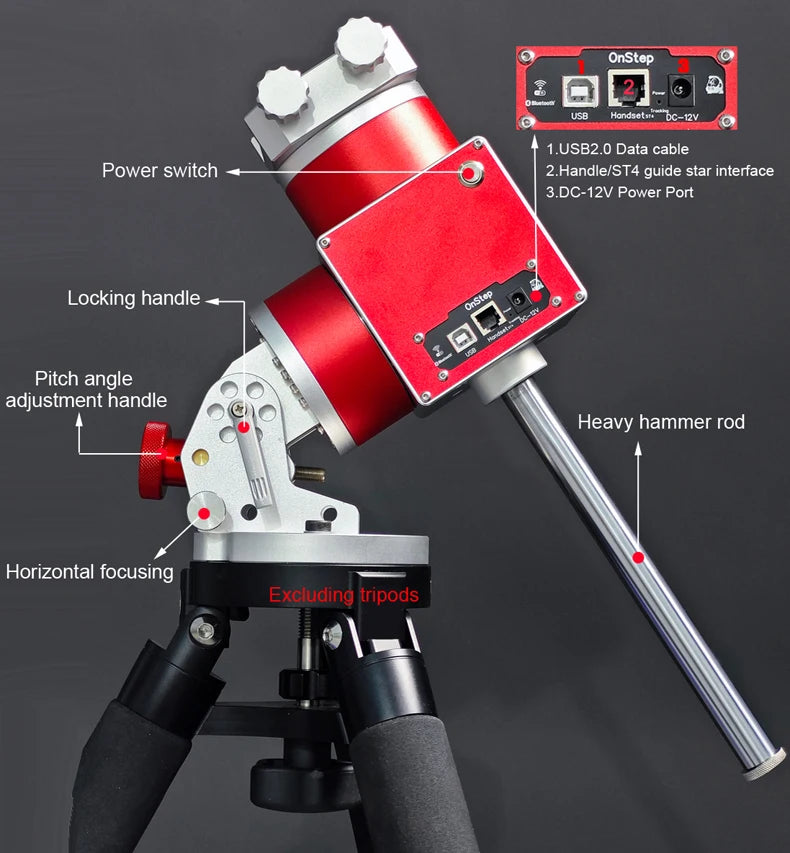

Control Options: Compatible with OnStep, ASIAir, NINA, USB, ST-4
Weight: ~5kg
Origin: Mainland China
Optional Accessories (Sold Separately):
🔌 Remote Control Module
📏 Extension Column

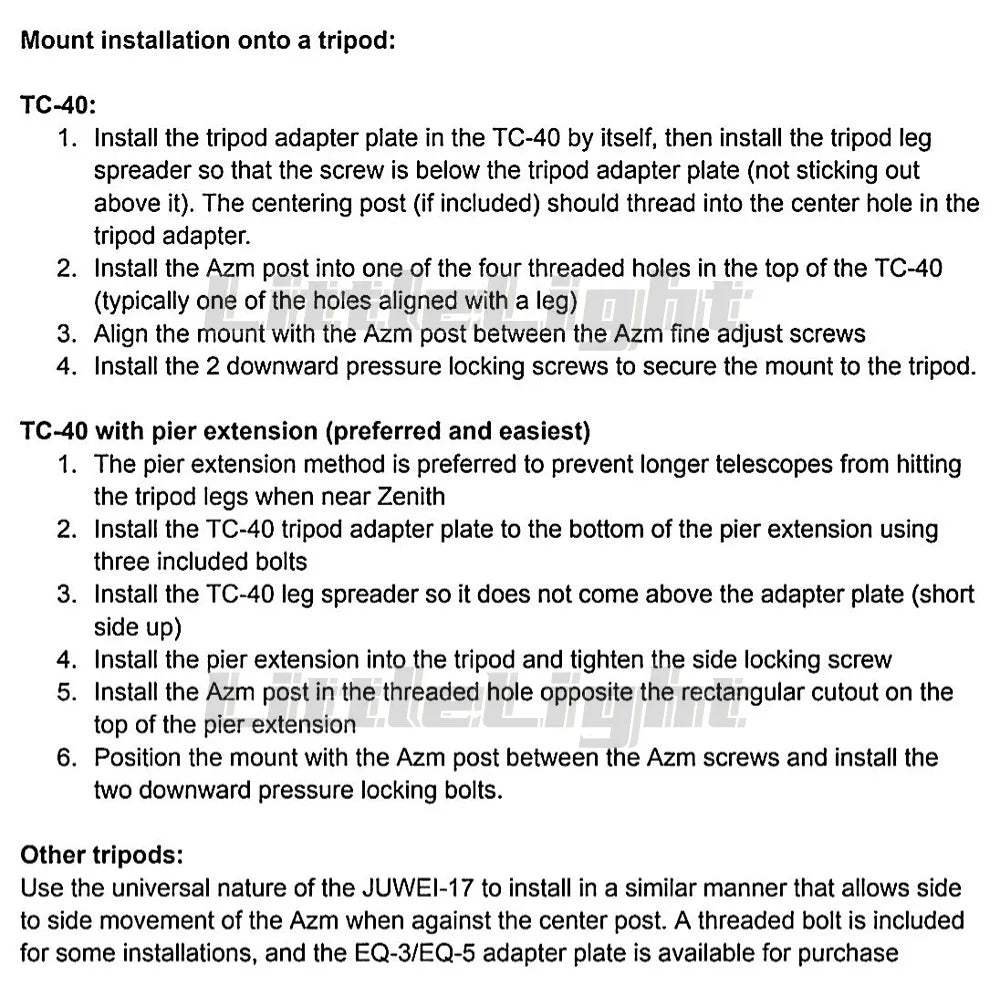

📐 Tripod Adapter
🛡 Warranty & Support:
✅ 1-Year Manufacturer Warranty
🛠 Lifetime Tech Support from ImpulseFix
🚚 Tracked, insured shipping from trusted suppliers
